Hibridinis įrašymo įrenginys 8kam.

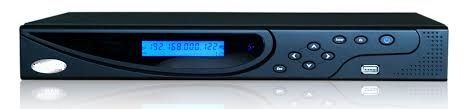

Technical Specifications:  • P2P function (IE) Special function P2P function (IE) Using Device ID and password to login www.vssweb.net, realize remote monitoring, playback and control like IE Web login.  • No need any network, IP setting, easy for end user to use network function. • Web 2.0 function Support multi brower, like: chrome,firefox,safari etc. • realize remote display, playback and PTZ control. • LCD screen on Front Panel Display DVR IP address,inner work temperature, error code,HDD number, Network status, recording status etc. SystemOperation System: Embedded LINUX • Pentaplex function: Live monitoring, recording, playback, backup & remote access • Control Mode: Front panel, USB mouse, IR remote control, Network • VideoCVBS Input : 4 ch. BNC • IP Camera Input(NVR)8ch.D1 30fp 8ch.D1 30fps 8ch.720P 30fps 8ch.1080P 30fps • IP Camera Input(Hybrid) 4ch.D1 30fps 4ch.720P 30fps 4ch.1080P 30fps • Support Protocol ONVIF • Standard PAL (625line, 50f/s) NTSC (525line, 60f/s) • Output1 CVBS, BNC (1.0Vp-p,75 ohms) • 1 HDMI, 1.3a,support 1920×1080 Resolution • 1 VGA,1920×1080,1440×900,1280×1024,1024×768,800×600 Resolution  • AudioInput 2 ch. BNC • Output 1 BNC (3.3Vp-p,4.7k ohms) • Two-way Talk1ch. Standalone • Display Resolution PAL:D1(704× 576),720P,1080P NTSC:D1(720×480),720P,1080P • D1/CIF/QCIF optional • Tour Display Support • Working Status Display LCD,blue backlight(working temperature,recording status,error code etc.) • Privacy Masking Four zones for privacy masking for each channel • Recording Video Compression MPEG-4/H.264(High Profile Level4.2) • Audio Compression G.711A • Image Encoding Adjustable encoding quality, variable code stream/fixed code stream • Dual Stream Support • Resolution(Analog) 4ch. D1 realtime • Resolution(NVR) 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF • Recording Mode Manual, auto, motion detection, stop • Time bar Support • Video Detection&AlarmTrigger EventsRecording, PTZ, Tour,Email • Motion Detection 396 (22×18) detection zone, variable sensitivity levels • Capture JPEG capture • Alarm Input 4ch. • Alarm Output 1ch.NO,NC • Playback&Backup Max Playback1/2/4/8 ch. • Backup Mode USB,HDD,Network Backup • Network Ethernet 1 RJ-45 port (10M/100M) • Network protocol TCP/IP, UDP, HTTP, RTP/RTSP • Network Functions DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G • Remote Operation Monitoring,PTZ control,playback,system setting,file download,log information • Smart Phone iPhone,iPad,Android,Blackberry,Windows Mobile • Hard Disk 2 SATA ports • HDD Management Hard disk hibernation technology, HDD faulty alarm&raid • Auxiliary Interface USB Interface 2 USB 2.0 ports • RS232Support • RS485Standard 485, half duplex,PTZ control • Environment Power Supply DC12V/2A • Power Consumption 10W (without HDD) • Working Environment -10?~+55? / 10%-90%RH  • Dimension(W*D*H) 1U, 360x250x48 (mm) • Weight 2Kg (without HDD) • Installation Desk type
