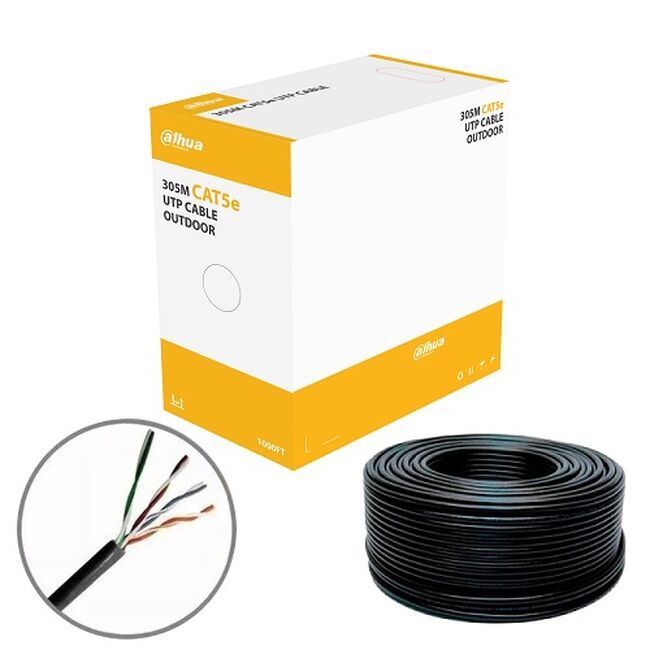

Dahua Lauko Kabelis CAT5E UTP 1x305m PFM920-5EU

Features: • 305m /carton outdoor UTP CAT5e, power over Ethernet, compatible with one cable. • High-purity (99.97%) Oxygen-Free Copper conductor material. • Customized MDPE outer sheath; meet ANSI/TIA 568-C.2 flame retardant class certified. • Environmentally friendly PVC and all materials used are RoHS compliant. Technical Specifications: • Material OFC (oxygen free copper) (99.97% purity). • Conductor diameter: 0.50 mm ± 0.01 mm. • American wire Gauge: 24AWG. • Insulation material: HDPE. • Insulation min. average thickness: 0.21mm. • Insulation diameter: 0.89mm±0.06mm. • Color: 8-core, blue, white/blue; orange, white/orange; green, white/green; brown, white/brown. • Sheath material: MDPE. • Sheath min. average thickness 0.7mm. • Sheath Diameter: 5.2 mm ± 0.4 mm. • Max. DC resistance of single conductor 9.5 Ohm/100m. • Min. insulation resistance 5000MOhm·km. • Max. DC resistance unbalance: 2% (pair intra), 4% (pairs inter). • Dielectric strength: No breakdown with 1KV DC for 1 min. • Max. attenuation: 22dB/100m@100MHz. • Characteristic impedance: 100 ± 15Ohm. • Near end cross talk: > /= 35.30 dB/100 m@100 MHz. • Return loss: > /= 20.1 dB/100 m@100 MHz. • Elongation at break: Sheath > /= 350%, Insulation > /= 300%. • Tensile strength: Sheath > /= 12 MPa, Insulation > /= 16 MPa. • Installation bending radius: > 8 times of outer cable diameter. • Conductor elongation at break: > /= 15%. • Shrinkage of insulation: < / = 5%. • Operation temperature: –30°C to +60°C. • Installation temperature: –5°C to +50°C. • Storage temperature: –10°C to +40°C; Humidity: <60%. • Length: 305m ± 1.5 m. • Packaging dimensions: 406mm × 404 mm × 216 mm. • Packaging method: 305m a carton, one protection carton with 2 cartons inside. • Net Weight: 8.5 (± 0.6) kg. • Packaging dimension 406mmx404mmx216mm. • Weight (with packaging): 9.3 (± 0.6) kg. • Executive standard: ANSI/TIA 568-C.2.
