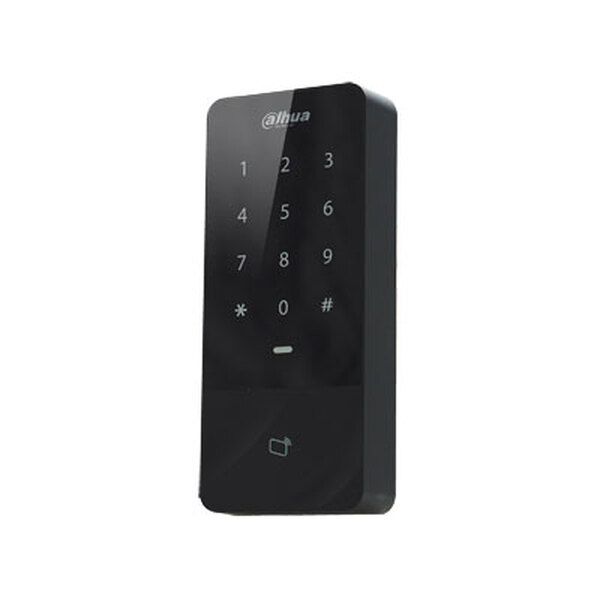

Atstuminių kortelių skaitytuvas + kontroleris + klaviatūra, RJ45, Wiegand, RS-485

Features: • Support 30,000 valid cards & 150,000 records • Support card, password and combination • TCP/IP to PC • Wiegand or RS-485 interface to reader • Door time out alarm, intrusion alarm, duress alarm and tamper alarm • Anti-passback, multi-card open • Water-proof design • Support 128 efficient time and holiday schedules • Watch dog function ensure device free from halting Technical Specifications: System • Main Processor 32 Bit • Memory 16M • Input/Output Ports • Input Door sensor x 1, Exit button x 1 • Output Relay x 1 (Door lock,) • Reader Reader x 1 Card Read • Read Format 13.56MHz(Mifare)/125KHz • Read Range 3-6cm (max.) • Response Time <0.1s Capacity • Cardholders 30,000 • Events 150,000 Function • User Management General, VIP, Guest, Patrol, Black list, Duress • Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm • Period Setting Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods Interface • To PC RJ45(10/100M) • To Reader Wiegand/ RS485 Genreal • RTC Yes • Voice Prompt No • Beep Tone Buzzer • Keyboard Sensitive touch keypad with blue backlight • Power Supply 9-15DC/200mA • Working Environment -30°C~+60°C • Working Humidity =95% • Dimension(W×D×H) 62*23*142mm • Weight 0.5Kg
