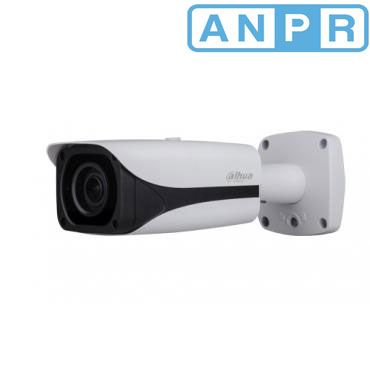

ANPR IP kam. 2MP ITC217-PW1B-IRLZ

System Overview Featuring a True Day/Night, 2-megapixel resolution LPR camera in parking and access control environement, video detect and recognize the plate inlow speed less than 40KMH with embedded LPR algorithm. White list database inside the camera control the barrier opened. This model provides true WDR for environment with direct sunlight or glare,even head light on when the vehicle approach.... Functions Embedded license plate recognition algorithm With built-in intelligent video analytics, the camera has the ability to detect and recognize moving vehicle's plate number in low speed less than 60kmh. No matter for the approaching or departure vehicle, access ANPR camera will take a snapshot for plate cutout, vehicle overview picture and also record the surveillance video. Embedded White list Embeded with white list inside the camera, control the barrier opened by the camera relayout if the plate number recognized is in the white list.Support to import batch list as much as 10000 records. Wide Dynamic Range Embeded with industry leading wide dynamic range (WDR) technology, vivid plate picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly or the head light of vehicle is on at night, True WDR (140dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video of plate. Features: • Embedded with LPR algorithm inside the camera • Support plate cutout, overview picture snapshot and video recording • Embedded with White list database. • Powerful 2.7-12mm motorized lens and IR light, ideal for monitor ANPR distance as 4~12m • Wide working temparature, IP67 and superior performance for outdoor applications • True WDR technology Technical Specifications: Camera • Image Sensor 1/2.7” 2Megapixel progressive scan CMOS • Effective Pixels 1920(H) x 1080(V) • Scanning System Progressive • Electronic Shutter Speed 1/25~1/10000 • IR Distance 4~12m • IR LEDs 4 Lens • Lens Type Motorized/ Auto Iris(DC) • Mount Type Board-in Type • Focal Length 2.7mm~12mm • Max Aperture F1.85 • Angle of View H: 100°~37° V: 55°~21° • Focus Control Motorized • Focus Distance Range 4-12m • Focus width Range 2 lane Intelligence • LPR function Embedded with lpr engine in the camera • Detection model Loop or video detection • Snapshot Overview and cutout of plate for picture • OSD overlay Time, place,plate number,lane No • White list 10000 records database inside the camera • Barrier control 1 ch relay out to control the barrier Video • Compression H.264M/H.264H/H.264B • Resolution 1080P(1920x1080) • Frame Rate 1080P(1 ~ 25/30fps) • Bit Rate Control CBR VBR • Bit Rate H.264: 80K bps~ 10Mbps • Day/Night Auto(ICR) / Color / B/W • BLC Mode BLC,HLC,WDR(120db) • White Balance Auto/Manual • Gain Control Auto/Manual • Noise Reduction 3D • Smart IR Support Network • Ethernet RJ-45 (10/100Base-T) • Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS, • Interoperability CGI, Onvif • Max. User Access 20 • Edge Storage • Micro SD, Max 128GB Status Display Local PC for Instant Recording • Web Viewer IE8,IE9,IE10,IE11 Management • Software DSS Certifications • Certifications CE FCC Interface • Audio Interface Input/Output 1 Input / 1 Output • RS485 NA • Alarm 2/1 channel In/Out Eelectrical • Power Supply DC12V, PoE (802.3af) • Power Consumption <11.5W (with IR on, motorized lens working) Environmental • Operating Conditions -30°C~+60°C, Less than 95% RH Ingress Protection & Vandal Resistance • IP67 Construction • Dimensions 272.9 mm × 94.9mm× 94.9mm • Net Weight 1.1kg
