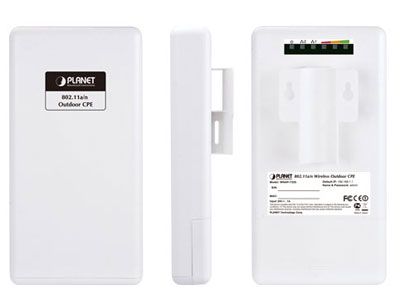

5GHz 300Mbps lauko bevielė stotelė

Features: • Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate • Backward compatible with 802.11a standard • Equipped with 10/100Mbps RJ-45 ports for LAN and WAN with auto MDI/ MDI-X supported • Supported connection types in WISP mode: Dynamic IP/ Static IP/ PPPoE • Supports virtual server and DMZ for various networking applications • Supports DHCP server, UPnP and Planet DDNS • Built-in 14dBi dual-polarization antenna • High output power up to 500mW with multiply-adjustable transmit power control • IP55 enclosure • Passive Power over Ethernet design • Operating temperature: -20~70°C • Multiple operation modes: Bridge and WISP • Multiple wireless modes: AP, Client CPE (WISP), WDS PtP, WDS PtMP and Repeater • Supports multiple-SSIDs to allow users to access different networks through a single AP • Supports WMM (Wi-Fi Multimedia) • Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES) and 802.1x RADIUS authentication • Supports MAC address filtering • Web-based UI and Quick Setup Wizard for easy configuration • Planet Smart Discovery Utility allows administrator to discover and locate each AP • SNMP-based management interface • System status monitoring includes DHCP Client and System Log Technical Specifications: • Standard Support: IEEE 802.11a/n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x • Memory: 64 Mbytes DDR SDRAM, 16 Mbytes Flash • PoE: Passive PoE • Interface:Wireless IEEE802.11a/n, 2T2R • PoE LAN (LAN 1): 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE • LAN 2: 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE pass-through • Antenna:Built-in 14dBi dual-polarization antenna, Horizontal: 30 degrees, Vertical: 20 degrees • Wireless Technology: IEEE 802.11a, IEEE 802.11n, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps , IEEE 802.11n (20MHz): up to 150Mbps , IEEE 802.11n (40MHz): up to 300Mbp • Media Access Control: CSMA/CA • Modulation: Transmission/Emission type: OFDM, Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM • Frequency Band5.180GHz ~ 5.825GHz • Operating Channel: 5.180GHz CH36, 5.200GHzCH40, 5.220GHzCH44, 5.240GHzCH48, 5.260GHzCH52, 5.280GHzCH56, 5.300GHzCH60, 5.320GHzCH64, 5.500GHzCH100, 5.520GHzCH104, 5.540GHzCH108, 5.560GHzCH112,l 5.580GHzCH116, 5.600GHzCH120, 5.620GHzCH124, 5.640GHzCH128, 5.660GHzCH132, 5.680GHzCH136, 5.700GHzCH140, 5.745GHzCH149, 5.765GHzCH153,l 5.785GHzCH157 , 5.805GHzCH161, 5.825GHzCH165, The 24 channels are defined by the theory. The actual application will vary based on the regulation in different regions and countries. • RF Output Power (Max.): IEEE 802.11a: up to 25 ±1dBm, IEEE 802.11n: up to 24 ±1dBm • Receiver Sensitivity (dBm),IEEE 802.11a: -94dBm, IEEE 802.11n: -93dBm • Output Power Control: 12~27dBm • Power Consumption: 12W • Power Requirements: LAN: 24V DC, 1A/ Passive PoE, Pin 4,5 V DC+, Pin 7,8 V DC-, Pin 3 Reset • LAN: Built-in DHCP server supporting static IP address distribution, Supports 802.1d STP (Spanning Tree) • WAN: Static IP, Dynamic IP, PPPoE • Operating Mode: Bridge, WISP • Firewall: NAT firewall with SPI (Stateful Packet Inspection), Built-in NAT server supporting virtual server and DMZ, Built-in firewall with port/ IP address/ MAC/ URL filtering • Wireless Mode: AP, Client, WDS PTP, WDS PTMP, WDS Repeater (AP+WDS) • Channel Width: 20MHz / 40MHz • Wireless Isolation: Enable to isolate each connected wireless client to let them cannot access mutually • Encryption Type: 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x • Channel Width:: 20MHz / 40MHz • Wireless Isolation: Enable to isolate each connected wireless client to let them cannot access mutually • Encryption Type: 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x • Multiple SSIDs: Up to 8 • Max. Wireless Client: 25 • Max. WDS APs: 8 • Max. Wired Clients: 60 • WMM: Supports Wi-Fi multimedia • QoS: Supports Quality of Service for bandwidth control • NTP: Network Time Management • Self Healing: Supports Schedule Reboot • Management: Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP • Diagnostic Tool: System Log, Ping Watchdog • Operating Temperature: -20~70°C • Operating Humidity: 10~95% non-condensing • IP Level: IP55 • Regulatory: CE, FCC, RoHS • Standard Accessories: WNAP-7325 x 1, PoE Injector x 1, Power Cord x 1, Plastic Strap x 1, Quick Installation Guide x 1 • Remark: means future firmware supports
