16-portų Gig. interneto tinklo šakotuvas

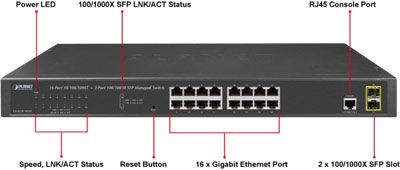

Features:• 16-port 10/100/1000BASE-T Gigabit RJ45 copper• 2 100/1000BASE-X mini-GBIC/SFP slots• RJ45 console interface for switch basic management and setup• Reset button for system factory defaultSwitching• Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X• Features Store-and-Forward mode with wire-speed filtering and forwarding rates• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation• 9K Jumbo frame• Automatic address learning and address aging• Supports CSMA/CD protocolLayer 2 Features• Supports VLAN• IEEE 802.1Q tagged VLAN• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)• Protocol VLAN• Voice VLAN• Private VLAN (Protected port)• Management VLAN• GVRP• Supports Spanning Tree Protocol• STP (Spanning Tree Protocol)• RSTP (Rapid Spanning Tree Protocol)• MSTP (Multiple Spanning Tree Protocol)• STP BPDU Guard, BPDU Filtering and BPDU Forwarding• Supports Link Aggregation• IEEE 802.3ad Link Aggregation Control Protocol (LACP)• Cisco ether-channel (Static Trunk)• Maximum 8 trunk groups, up to 8 ports per trunk group• Provides port mirror (many-to-1)• Loop protection to avoid broadcast loopsQuality of Service• Ingress / Egress Rate Limit per port bandwidth control• Traffic classification• IEEE 802.1p CoS• DSCP / IP Precedence of IPv4 / IPv6 packets• Strict priority and Weighted Round Robin (WRR) CoS policiesMulticast• Supports IPv4 IGMP snooping v2 and v3• Supports IPv6 MLD snooping v1, v2• IGMP querier mode support• IGMP snooping port filtering• MLD snooping port filteringSecurity• Storm Control support• Broadcast / Unknown-Unicast / Unknown-Multicast• Authentication• IEEE 802.1X port-based network access authentication• Built-in RADIUS client to co-operate with the RADIUS servers• DHCP Option 82• RADIUS / TACACS+ authenticationAccess Control List• IPv4 / IPv6 IP-based ACL• IPv4 / IPv6 IP-based ACE• MAC-based ACL• MAC-based ACE• MAC Security• Static MAC• MAC Filtering• Port security for source MAC address entries filtering• DHCP snooping to filter distrusted DHCP messages• Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding• IP source guard prevents IP spoofing attacks• DoS attack preventionManagement• IPv4 and IPv6 dual stack management• Switch Management Interface• Local Command Line Interface• IPv4 / IPv6 Web switch management• Telnet Command Line Interface• SNMP v1, v2c and v3• HTTPs secure access• Built-in Trivial File Transfer Protocol (TFTP) client• Static and DHCP for IP address assignmentSystem Maintenance• Firmware upload / download via HTTP / TFTP• Configuration upload / download through HTTP / TFTP• Hardware reset button for system reset to factory default• SNTP Network Time ProtocolCable diagnostics• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED• SNMP trap for interface Link Up and Link Down notification• Event message logging to remote Syslog server• Four RMON groups (history, statistics, alarms and events)• PLANET Smart Discovery UtilityTechnical Specifications:• Copper Ports 16 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports• SFP/mini-GBIC Slots2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode• Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)• Reset Button System factory default• Switch Architecture Store-and-Forward• Switch Fabric36Gbps / non-blocking• Switch Throughput@64 bytes 26.7Mpps @64 bytes• MAC Address Table 8K entries• Shared Data Buffer 4.1 megabits• Flow Control IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex• Jumbo Frame 9216 bytes• Reset Button> 5 sec: Factory defaultLED System:• Power (Green)• 10/100/1000T RJ45 Interfaces (Port 1 to Port 16):• 1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange)• 100/1000Mbps SFP Interfaces (Port 17 to Port 18):• 1000 LNK / ACT (Green), 100 LNK/ACT (Orange)• Power Requirements 100~240V AC, 50/60Hz, 0.8A (max.)• Power Consumption / Dissipation Max. 10.4 watts / 35 BTU• Dimensions (W x D x H) 445 x 207 x 45 mm (1U height)• Weight 2kg• ESD Protection Yes• Enclosure Metal• Layer 2 Functions• Port Mirroring TX / RX / Both• Many-to-1 monitor• VLAN802.1Q tagged-based VLAN • Up to 256 VLAN groups, out of 4094 VLAN IDs• 802.1ad Q-in-Q tunneling (VLAN stacking)• Voice VLAN• Protocol VLAN• Private VLAN (Protected port)• Management VLAN• Link Aggregation IEEE 802.3ad LACP and static trunk• Supports 8 groups of 8-port trunk• Spanning Tree Protocol STP, IEEE 802.1D Spanning Tree Protocol• RSTP, IEEE 802.1w Rapid Spanning Tree Protocol• MSTP, IEEE 802.1s Multiple Spanning Tree Protocol • STP BPDU Guard, BPDU Filtering and BPDU Forwarding• IGMP SnoopingIPv4 IGMP (v2 / v3) Snooping• IGMP Querier• Up to 256 multicast groups• MLD SnoopingIPv6 MLD (v1 / v2) snooping, up to 256 multicast groups• Access Control List IPv4/IPv6 IP-based ACL / MAC-based ACL• IPv4/IPv6 IP-based ACE / MAC-based ACE• QoS 8 mapping ID to 8 level priority queues • Port Number • 802.1p priority• DSCP / IP Precedence of IPv4 / IPv6 packets• Traffic classification based, strict priority and WRR• Ingress / Egress Rate Limit per port bandwidth control• Security IEEE 802.1X port-based authentication• Built-in RADIUS client to co-operate with RADIUS server• RADIUS / TACACS+ authentication• IP-MAC port binding• MAC filtering• Static MAC address• DHCP snooping and DHCP Option82• STP BPDU guard, BPDU filtering and BPDU forwarding• DoS attack prevention• ARP inspection• IP-source guard• Storm control support• Broadcast / Unknown-Unicast / Unknown-MulticastManagement Functions• Basic Management Interfaces RJ45 Console / Web browser / Telnet / SNMP v1, v2c, v3• Firmware upgrade by HTTP / TFTP protocol through Ethernet network• Configuration upload / download through HTTP / TFTP• Remote / Local Syslog• System log• LLDP protocol • SNTP• PLANET Smart Discovery Utility• Secure Management InterfacesHTTPs, SNMP v3• SNMP MIBs RFC 3635 Ethernet-like MIB• RFC 2863 Interface Group MIB• RFC 2819 RMON (1, 2, 3, 9)• RFC 1493 Bridge MIB• Standards Conformance• Regulation ComplianceFCC Part 15 Class A, CE• Standards ComplianceIEEE 802.3 10BASE-T• IEEE 802.3u 100BASE-TX / 100BASE-FX• IEEE 802.3z Gigabit SX/LX• IEEE 802.3ab Gigabit 1000BASE-T• IEEE 802.3x Flow Control and Back pressure• IEEE 802.3ad Port Trunk with LACP• IEEE 802.1D Spanning Tree protocol• IEEE 802.1w Rapid Spanning Tree protocol• IEEE 802.1s Multiple Spanning Tree protocol• IEEE 802.1p Class of Service• IEEE 802.1Q VLAN Tagging• IEEE 802.1x Port Authentication Network Control• IEEE 802.1ab LLDP• RFC 768 UDP• RFC 793 TFTP• RFC 791 IP• RFC 792 ICMP• RFC 2068 HTTP• RFC 1112 IGMP version 1• RFC 2236 IGMP version 2• RFC 3376 IGMP version 3• RFC 2710 MLD version 1• RFC 3810 MLD version 2Environment• Operating Temperature: 0 ~ 50 degrees C• Relative Humidity: 5 ~ 95% (non-condensing)• Storage Temperature: -10 ~ 70 degrees C• Relative Humidity: 5 ~ 95% (non-condensing)
