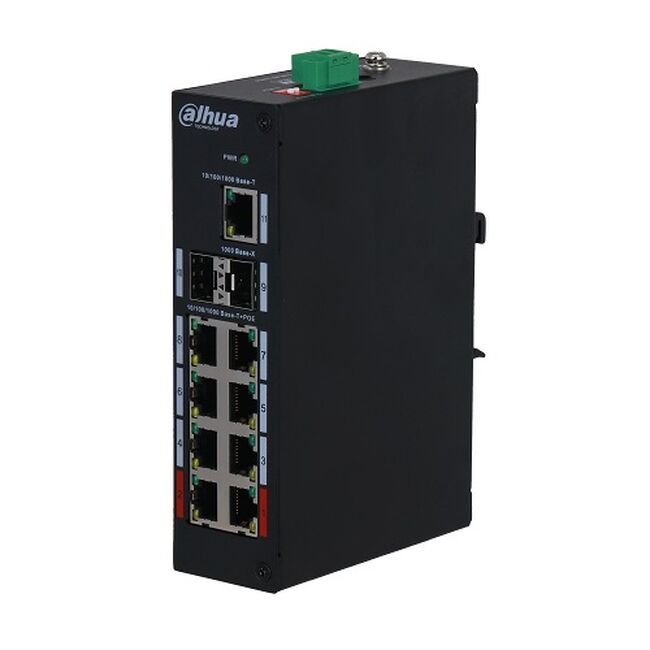

PoE šakotuvas 8*1000Mbps PoE portai, Uplink 1000Mbps, 120W

Features: • 11-port unmanaged gigabit switch with 8-port PoE. • 8-pin simultaneous PoE power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. • All-giga ports. • Wide working temperature. • Long distance PoE. • The red port supports the IEEE802.3bt and the Hi-PoE standards. • Intelligent PoE controls over power consumption and offers real-time monitoring. • BT 90W. • Supports wall-mount installation. • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3az, IEEE802.3x standards. • Conforms to IEEE802.3af and IEEE802.3at power supply standard. Technical Specifications: • Model PFS3211-8GT-120. • Ethernet Port: RJ-45 8x 10/100/1000Mbps (PoE); SFP 2x 1000Mbps (uplink); RJ-45 1x 10/100/1000 Mbps (uplink). • PoE Power consumption: Full load = 120W, Idling: 5W. • Power consumption management: yes. • PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-). • Communication standards: IEEE802.3/ IEEE802.3u/ IEEE802.3X/ IEEE 802.3az/ IEEE 802.3ab. • PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt. • Switching capacity: 33 Gbps. • Packet forwarding rate: 16.37 Mpps. • Packet buffer memory: 1.75 Mbit. • Long distance PoE: 250 m long distance PoE transmission. • Application humidity: 5%~95% RH. • Power supply: 48V - 57V DC. • Lightning Protection Common Mode: 4 kV. • Differential mode: 2 kV. • ESD Protection Air discharge: 8 kV. • Contact discharge: 6 kV. • Working temperature: -30°C~65°C. • Wall-mount installation. • Anti-theft lock hole. • Weight: 0.67 kg. • Dimensions(W×D×H): 150 mm x 110 mm x 42 mm.
