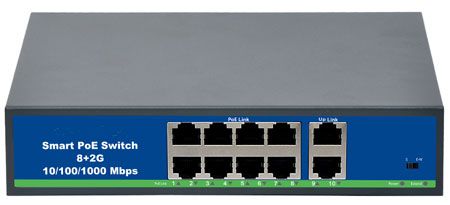

PoE šakotuvas 100Mbps 8portų+2G uplink, 250m Distancija, 802.3AF/AT, 120W(52V 2.3A)

Features: • 8*10/100mbps POE port;2*100/1000mbps UP Link port • 250m Distance; Vlan Support • REALTEK Chipset • Support IEEE802.3AF/AT • Whole Power:120W(52V 2.3A) • All port supported by MDI/MDIX auto flip and self negotiation • Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port. • Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode. • Each port max. power supply reached 30W. Technical Specifications: • POE Port 1 to 8 support IEEE802.3AF/AT Standard • Output Power15.4W/30W IEEE802.3af/at • Power PinBoth 1/2+?3/6- and 4/5+7/8- • Whole Power?120W (52V 2.3A) • POE ProtocolIEEE 802.3af/IEEE 802.3at • POE Type End-span • Power Distance ?250m • Network Standard IEEE 802.3? IEEE802.3u?802.3x?802.3af/at • Network Medium 10/100BASE-TX:5 class and above non shielded twisted pair • Data Distance ?250m • Switch Capability 10Gbps • Forwarding Mode Store and forward • Forwarding Rate 100Mbps:14880pps 1000Mbps:14800pps • MAC Address MAC address table 2K • Port Function Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode • LED Indicator LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender • Working Environment Working temperature:-10°-- 55°C • Weight 1.2kg • Size 270mm*180mm*44mm(L*W*H)
