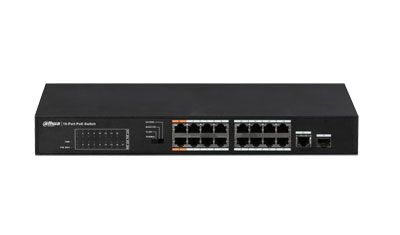

PoE šakotuvas 100Mbps 16portu+1G uplink + 1SFP, PoE iki 250, Hi-PoE

Features: • Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards • Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards • Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode. • Supports Store-and-Forward • 16*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX) • Port 1-2 support the maximum power of 60W, PoE output total power up to 135W • Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode • 4K entry MAC address table with auto-learning and auto-aging • LED indicators for monitoring power, link and activity Technical Specifications: Standards • IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE • Interface 16 x 10/100Mbps RJ45 • 1 x Gigabit Combo (RJ45/SFP) • Transfer Method Store-and-Forward • Switching Capacity 5.2Gbps • Packet Forwarding Rate 3.87Mpps • Packet Buffer 2.75Mbit • PoE Ports(RJ45) Port 1/2 : Hi-PoE/PoE+/PoE; • Port 1-16 : PoE+/PoE • Power Pin Assignment 1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-) • Other PoE port: 4/5 (+), 7/8 (-) • PoE Budget 135W Mode • Default mode All ports can communicat • CCTV mode 1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other • Extender mode 1 to 8 port rate down to 10Mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other Indicators • Per Device Power: Green MAX : Red • Per Port Link/Act: Green PoE: Yellow • Power Supply AC 100V~240V 50/60HZ • Dimensions (W × D × H) 340*200*43 mm (13” metal case) Environment • Operating Temperature: 0°C ~ 45°C • Storage Temperature: -40°C ~ 70°C • Operating Humidity: 10%~90% RH No condensation • Storage humidity: 5%~90% RH No condensation
