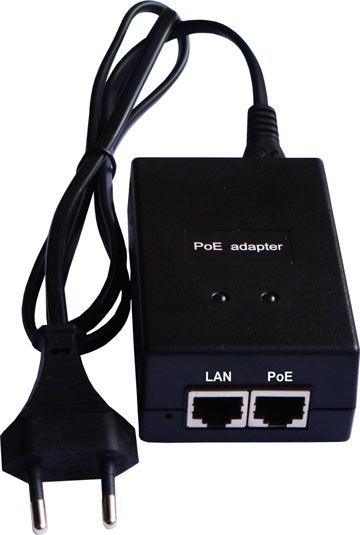

PoE įterpėjas-injector 1 kanalo POE-004, 48V, 0,4A

Features: • Complies with IEEE 802.3/802.3u 10/100Base-T. • Provides 48Vdc via pairs 4,5(+)& 7,8(-) of RJ-45 cable and for power supply safety. • Distance up to 100 meters. • Provides up to 15.4W of Power over Ethernet. Technical Specifications: • AC VOLTAGE: 90Vac TO 264Vac INPUT. • FREQUENCY: 47Hz TO 63Hz. • AC CURRENT: 0.6A MAX. • INRUSH CURRENT: 40A MAX. AT 115Vac AND FULL LOAD, COLD START, 25°C. • OUTPUT VOLTAGE: 48VDC. • OUTPUT TOLERANCE: 45.6V~50.4V. • RIPPLE & NOISE: 480mVp-p. • LOAD: MIN 0A MAX0.4A. • RISE TIME: 50mS MAX. • HOLD-UP TIME: MINIMUM 10mS AT 80% MAX LOAD, 115Vac INPUT. • Efficiency: THE SWITCHER SHOULD PROVIDE DC CONVERSION EFFICIENCY MINIMUM 80%. • OVERSHOOT: OVERSHOOT SHOULD NOT EXCEED 10% OVER NOMINAL VOLTAGE. • Operating Temperature: 0°C~40°C. • Operating Humidity: 20%~90% (Non-Condensing).
