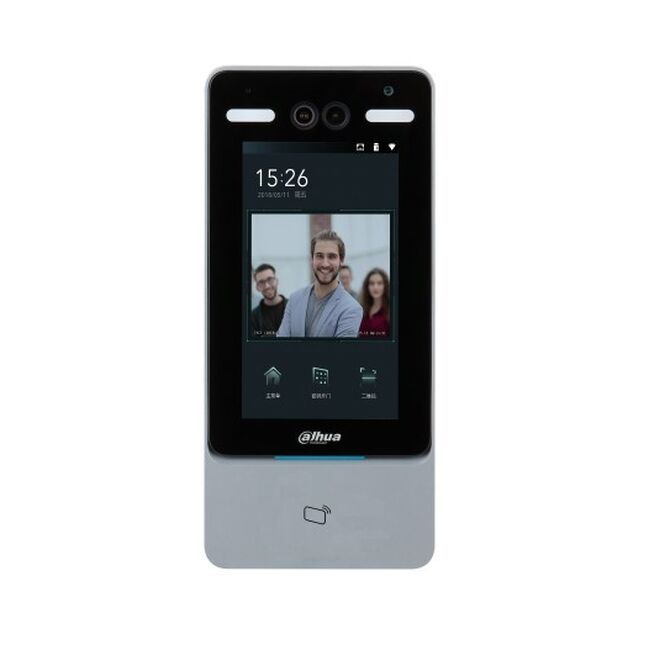

Face Recognition Access Control and Time Attendance Terminal

Features: • 7 inch LCD, touchscreen, resolution 1024 (H) × 600 (V). • Human face images, cards, and passowrds can be • Support unlock through face, card (ID/IC card), password, and their • With face detection box; the largest face among faces that appear at • Face recognition distance is 0.3 m–2 m, human • Face verification accuracy>99%; face comparison speed ?0.5s per • Profile faces can be recognized; face recognition angle can be • Supports 30, 000 users, 30, 000 cards, 30, 000 passwords, and 50 • Support liveness detection. • Supports duress alarm, tamper alarm, intrusion alarm, door contact • Has six user levels: general users, patrol users, blacklist users, VIP • Attendance records can be uploaded to the management platform. Technical Specifications: System Parameter • 7 inch touchscreen • Communication Method TCP/IP, Wi-Fi • Liquid Crystal Display 7 inch, 350 cd/m² • Screen Resolution 1024 (H) × 600 (V) • Lens 2 MP double lens • WDR Support • Light Compensation Adjustable white light Port • RS-485 Port 1 • Alarm Input 2 • Alarm Output 2 • Lock Control 1 set • Door Contact 1 set • Exit Button 1 • Tamper Switch 1 set • Network Interface 1 • USB Port 1 • Wiegand Protocol 26, 34, 66 Alarm Parameter • Tamper Alarm Support • Duress Alarm Support • Door Sensor Timeout Alarm Support • Illegal intrusion Support • Illegal Card Exceeding Time Alarm Support • User Parameter Support • Duress Card (user) Support • Patrol Card (user) Support • VIP Card (user) Support • Guest Card (user) Support • Card for the Disabled (user) Support • Black and White List Setting Support Unlock Mode • Face recognition, password, card and their combinations Card Reader Type • Model ASI7213Y: IC card • Card Reading Distance 1 cm–5 cm (0.03 ft–0.16 ft) • Human Height 1.1 m–2.4 m (3.61 ft–7.87 ft) • Face Recognition Configuration Support • Face Recognition Distance 0.3 m–2 m (0.98 ft–6.56 ft) • Face Recognition Accuracy Rate >99% • Face Recognition Speed ?0.5s/face • Face Image Quantity 10000 • Duress Card Support • Duress Password Support • Advertisement Display • Advertisements can be displayed • Network Update Online update • OSDP Protocol Support • Period List 128 • Holiday Period 128 • External Card Reader 1 set Wiegand and 1 set RS-485 • Real-Time Monitor Support • Remote Verification Support • Multiple Verification Support • Anti-Passback Support • First Card Unlock Support • Alarm Linkage Support • System Parameter Configuration Support • Rated Power 12V DC • Rated Current 2A Installation method • Hang-mounted • Dimensions 283 mm × 130 mm × 35 mm (11.14" × 5.12” × 1.38") • Working Temperature –10°C to + 55°C (+14°F to +131°F) • Working Humidity 5% RH–95% RH • Atmospheric Pressure 86 kPa–106 kPa • Power Consumption 15 W • Total Weight 1.5 kg (3.31 lb) • Environmental Requirement Indoor
