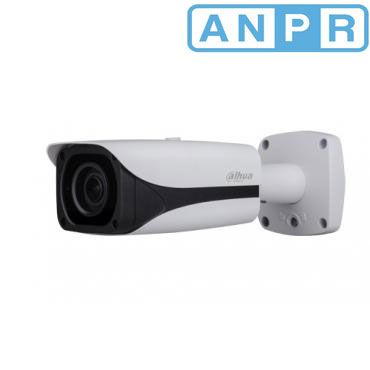

ANPR IP kam. 2MP ITC237-PW1B-IRLZ

Features:  • Embedded with LPR algorithm inside the camera • Support plate cutout, overview picture snapshot and video recording • Embedded with White list database,control the barrier • Powerful 2.7-12mm motorized lens and IR light, ideal for monitor ANPR distance as 3~8m • Wide working temparature, IP67,IK10 and superior performance for outdoor applications • True WDR technology  Overview  Featuring a True Day/Night, 2-megapixel resolution LPR camera in parking and access control environement, video detect and recognize the plate in low speed less than 40KMH with embedded LPR algorithm. White list inside the camera control barrier  Technical Specifications:  Camera • Image Sensor 1/2.8 inch 2 Megara CMOS • Max. Resolution 2MP, 1920(H) x 1080(V) • Scanning System Progressive • Minimum Illumination 0. 005Lux/F1.6 (Color),0Lux/F1.53(IR on) • Electronic Shutter Speed 1/50~1/10000 • IR Distance 3~8m • IR LEDs 4 Lens • Lens Type Motorized/ Auto Iris(DC) • Mount Type Board-in Type • Focal Length 2.7mm~12mm • Max Aperture F1.6 • Angle of View H: 101°~ 36 ° V:53 ° ~20 ° • Focus control Auto • Focus Width Range 1 lane • Focus Distance Range 3-8m Intelligence • License Plate Recognition (LPR) Embedded • Detection model Loop or video detection • Snapshot Overview and cutout of plate for picture • OSD overlay Time, place,plate number,lane No • White list 10000 recording • Barrier control 1 ch relay out to control the barrier Network • Ethernet RJ-45 (100/1000Base-T) • Interoperability CGI, SDK, Onvif • Max. User Access 20 • Web Viewer IE8,IE9,IE10,IE11,Chrome V33, V41 • Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS • Edge Storage Micro SD, Max 64GB Status Display Local PC for Instant Recording • Management Software DSS Video • Compression H.265/H.264M/H.264H/H.264B • Resolution 1080P(1920x1080) • Frame Rate 1080P(1 ~ 25/30fps ) • Bit Rate Control CBR VBR • Bit Rate 32 ~ 16384 Kbps • Day/Night Auto(ICR) / Color / B/W • Dual Stream Support, main and sub stream • BLC Mode BLC,HLC,WDR(140db) • White Balance Auto/Manual • Gain Control Auto/Manual • Noise Reduction 3D Certifications • Certifications CE FCC Interface • Audio Interface Input/Output 1 Input / 1 Output • RS485 NA • Alarm 2/1 channel In/Out Eelectrical • Power Supply DC12V, PoE (802.3af) • Power Consumption <12W (with IR on, motorized lens working) Environmental • Operating Conditions -40°C~+60°C, Less than 95% RH • RS485Ingress Protection & Vandal Resistance IP67, IK10 Construction • Dimensions 273.30mm × 94.8mm× 94.8mm • Net Weight 1.12kg( 1.52 kg with packaging)
